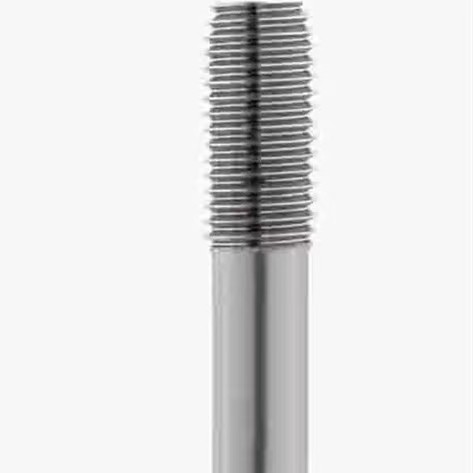

33YZ66 Thread-Forming STI Taps

$43.91Including tariffs

Bulk orders will be discounted, please contact us.

These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S. The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. Cobalt taps are harder and provide more wear resistance when tapping hard materials at high speeds than high-speed steel taps.

Product Number: 33YZ66

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 1626000708
Thread Size #6-32
Tap Material Cobalt
Tap Finish TiCN
Thread Length 29/64 in
Overall Length 2-53/64 in
Thread Limit H2
Tap Length Standard DIN
Tap Shank Standard ANSI
Primary Material Application Aluminum; Brass; Bronze; Copper; Hardened Steel; Stainless Steel; Steel
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Extended Neck No
Interrupted Thread Yes
Material Grade Machining 16260
Measurement System Pipe
Primary Material Application ISO Code H; M; N; P
Shank Dia 3/16 in
Shank Length 1-27/32 in
Square Size 0.1510 in
Tap Chamfer Modified Bottoming; Semi-Bottoming
Tap Style Thread Forming
Tap Thread Size #6-32
Threads per Inch 32
UNSPSC 27112806
Country of Origin Japan (subject to change)
Thread Standard UNC
Features 40-50% Less Machining Torque; Fluteless Forming Tap
Shank Type Machining Straight
Secondary Material Application Hardened Steel; Nickel; Titanium
Secondary Material Application ISO Code H; S
Spiral Direction Neutral
Class of Fit 3B
Thread Pitch 3.00mm
