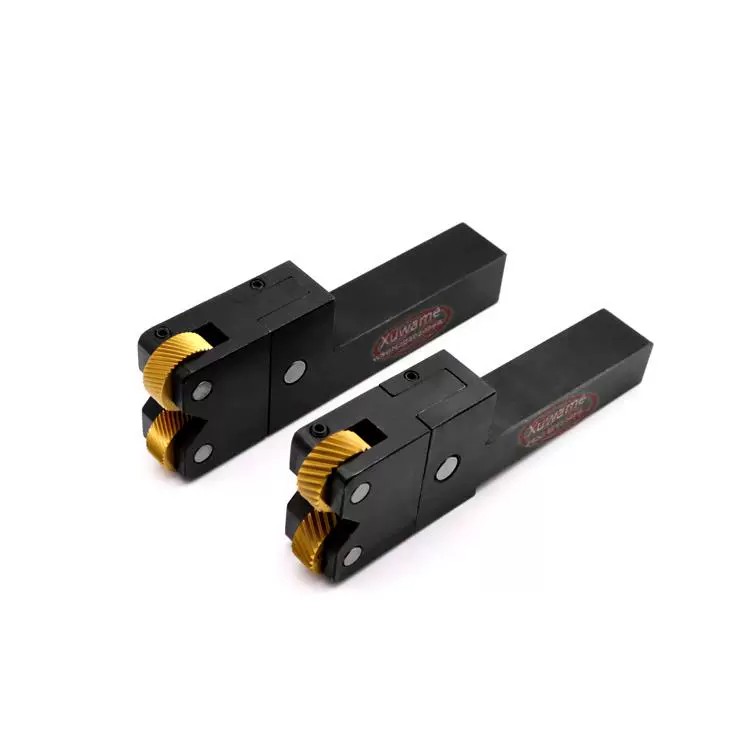

3FHG9 Knurling Holders

$149.86Including tariffs

Bulk orders will be discounted, please contact us.

Product Number: 3FHG9

Mfr Model	IKT-50-2
Shank Width	1-1/4 in
Shank Length	3-3/4 in
Overall Length	4 in
Number of Knurls Required	1
Knurl Series	IKT
Head Height	2-1/2 in
Head Length	2-1/8 in
Head Width	1.6600 in
For Knurl Outside Dia	1/2 in
For Knurl Hole Dia	1/4 in
Cutting Direction	Neutral
Features	Diameter Adjustment Screw Regulates the Depth of the Knurl Pattern and the Diameter Size;For Twin Wheel and Single Wheel Knurling
For Knurl Face Width	5/32 in
For Use With	SW2 Knurl Wheels
Includes	(1) Straight 30 TPI Knurl Wheel For Straight Pattern
Knurl Holder Application	For Internal Knurling Against A Square Shoulder To Reduce Oversize Internal Diameters Or For Specific Knurling Applications
Knurls Included	Yes
Shank Height	1/2 in
Shank Shape	Round
UNSPSC	23153303
Country of Origin	USA (subject to change)
Shank Material	Alloy Steel
