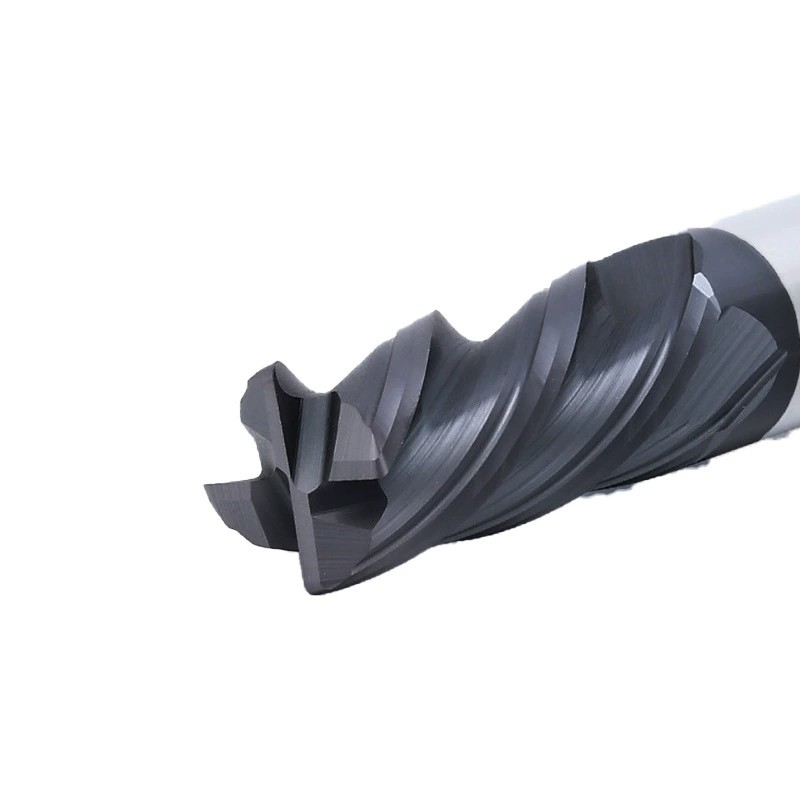

48KA60 High-Performance Finishing Carbide Corner-Chamfer End Mills

$132.14Including tariffs

Bulk orders will be discounted, please contact us.

The AlTiN coating on these end mills protects them from wear and is more resistant to high heat than TiN, TiCN, and TiAlN coatings. AlTiN-coated end mills are used for milling hard and abrasive materials.

Product Number: 48KA60

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 772E12005T
Material Machining Carbide
Finish Machining AlTiN
Measurement System Metric
Milling Dia 12.00 mm
Length of Cut 60.00 mm
Overall Length 125.00 mm
Shank Dia 12.00 mm
Shank Type Machining Straight
End Mill Style Corner Chamfer
Number of Flutes 7
End Mill Application Finishing
Drilling Tool Configuration Individual
End Mill Cutting Type Center Cutting
List Number 771E/772E
Material Grade Machining WS15PE
Primary Material Application Hardened Steel; Nickel; Stainless Steel; Steel; Titanium
Primary Material Application ISO Code H; M; P; S
UNSPSC 23172005
Country of Origin Israel (subject to change)
Material Applications Cast Iron; Hardened Materials; High-Temp Alloys; Stainless Steel; Steel
Flute Type Helical
Coolant Fed Non-Coolant Through
Secondary Material Application General Purpose
Secondary Material Application ISO Code S
Helix Angle 38 °
Cutting Direction Right Hand
Neck Length 0.7402 in
Chamfer Width 0.50 mm
Chamfer Angle 45 °
Pitch Unequal Flute Spacing
Max Helix Angle 30 °
Neck Dia 18.80 mm
