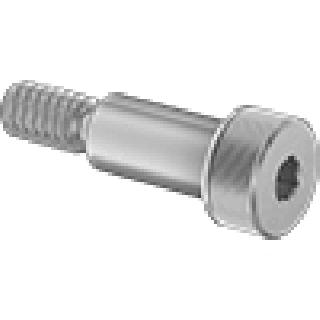

90292A076 | High-Strength 17-4 PH StainlessSteel Shoulder Screws

$2.56

Bulk orders will be discounted, please contact us.

Product Number: 90292A076

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Product Number 90292A076
System of Measurement Inch
Drive Style Hex
Head Type Socket
Thread Direction Right Hand
Thread Fit Class 3A
Thread Size 8-32
Thread Spacing Coarse
Thread Type UNC
Drive Size 3/32"
Screw Size Decimal Equivalent 0.164"
Socket Head Profile Standard
Material 17-4 PH Stainless Steel
Hardness Rockwell C28
Tensile Strength 130,000 psi
Country of Origin Peoples Republic of China
Head Diameter 5/16"
Head Height 5/32"
Head Texture Knurled
Minimum Shear Strength 65,000 psi
Schedule B 731815.9000
Shoulder Diameter 3/16"
Shoulder Diameter Tolerance -0.004" to -0.002"
Shoulder Fit Standard
Shoulder Length 1/2"
Shoulder Length Tolerance -0.005" to 0.005"
Thread Length 3/16"
