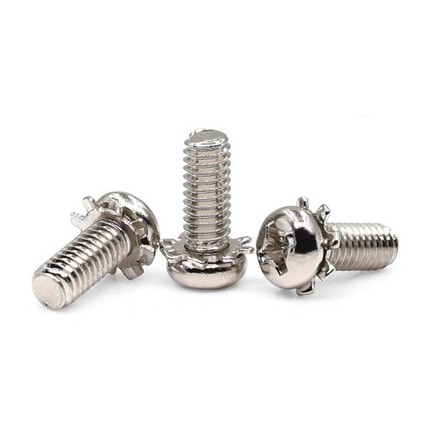

90402A830 | Steel Pan Head Screws with External-Tooth Lock Washer

$0.08

Bulk orders will be discounted, please contact us.

Product Number: 90402A830

SEND INQUIRY

  • Description
Product Number 90402A830
System of Measurement Inch
Drive Style Phillips
Head Type Rounded
Locking Type Lock Washer
Threading Fully Threaded
Thread Direction Right Hand
Thread Fit Class 2A
Thread Size 10-32
Thread Spacing Fine
Thread Type UNF
Drive Size No. 2
Screw Size Decimal Equivalent 0.190"
Length 5/8"
OD 0.383"
Screw Features With Washer
Material Zinc-Plated Steel
Hardness Rockwell B69
Tensile Strength 60,000 psi
Specifications Met ASME B18.13
Country of Origin Peoples Republic of China
Head Diameter 0.373"
Head Height 0.133"
Rounded Head Profile Standard
Rounded Head Style Pan
Schedule B 731815.9000
Thickness 0.024"
Washer Material Zinc-Plated Steel
Washer Type External-Tooth Lock
