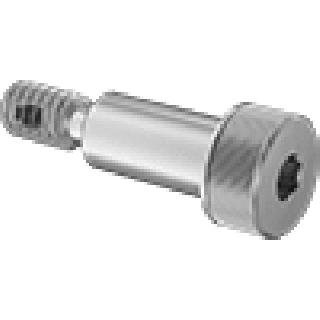

91327A197 | 18-8 Stainless Steel Thread-Locking Shoulder Screws

$11.87

Bulk orders will be discounted, please contact us.

Product Number: 91327A197

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Product Number 91327A197
System of Measurement Inch
Drive Style Hex
Head Type Socket
Locking Type Thread Locker
Thread Direction Right Hand
Thread Fit Class 3A
Thread Size 3/8"-16
Thread Spacing Coarse
Thread Type UNC
Type Nylon Patch
Drive Size 1/4"
Screw Size Decimal Equivalent 0.375"
Socket Head Profile Standard
Material 18-8 Stainless Steel
Hardness Rockwell B55
Tensile Strength 70,000 psi
Specifications Met ASME B18.3
Country of Origin Peoples Republic of China
Finish Passivated
Head Diameter 3/4"
Head Height 5/16"
Head Texture Knurled
Minimum Shear Strength Not Rated
Schedule B 731815.9000
Shoulder Diameter 1/2"
Shoulder Diameter Tolerance -0.004" to -0.002"
Shoulder Fit Standard
Shoulder Length 2"
Shoulder Length Tolerance -0.005" to 0.005"
Temperature Range -50° to 250° F
Thread Length 5/8"
