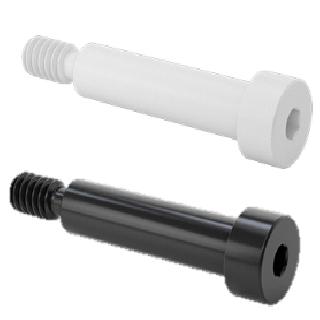

93897A425 | Nylon Shoulder Screws

$0.25

Bulk orders will be discounted, please contact us.

Product Number: 93897A425 产品来源

Product Number	93897A425
System of Measurement	Inch
Drive Style	Hex
Head Type	Socket
Thread Direction	Right Hand
Thread Fit	Class 2A
Thread Size	1/4"-20
Thread Spacing	Coarse
Thread Type	UNC
Drive Size	5/32"
Screw Size Decimal Equivalent	0.250"
Socket Head Profile	Standard
Material	Nylon 6/6 Plastic
Hardness	Not Rated
Tensile Strength	Not Rated
Color	Black, Off-White
Country of Origin	Peoples Republic of China
Head Diameter	7/16"
Head Height	7/32"
Head Texture	Smooth
Minimum Shear Strength	Not Rated
Schedule B	392690.9988
Shoulder Diameter	5/16"
Shoulder Diameter Tolerance	-0.012" to -0.002"
Shoulder Fit	Standard
Shoulder Length	1/2"
Shoulder Length Tolerance	-0.015" to 0.015"
Temperature Range	-40° to 185° F
Thread Length	7/16"
