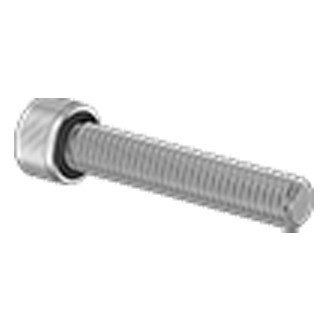

95198A343 | Sealing Socket Head Screws

$2.45

Bulk orders will be discounted, please contact us.

Product Number: 95198A343

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Product Number 95198A343
Drive Style Hex
Head Type Socket
Threading Fully Threaded
Thread Direction Right Hand
Thread Fit Class 3A
Thread Size 1/4"-28
Thread Spacing Fine
Thread Type UNF
Drive Size 3/16"
Diameter 3/8"
Height 1/4"
Screw Size Decimal Equivalent 0.25"
For Maximum Hole Diameter 0.265"
Length 1/2"
Socket Head Profile Standard
Screw Features Sealing
Material 18-8 Stainless Steel
Hardness Rockwell B85
Tensile Strength 100,000 psi
Maximum Pressure 1,500 psi
O-Ring Material Buna-N Rubber
O-Ring Temperature Range -40° to 225° F
Specifications Met ASME B18.3, DIN 912, ISO 4762
Country of Origin Peoples Republic of China
Schedule B 731815.9000
