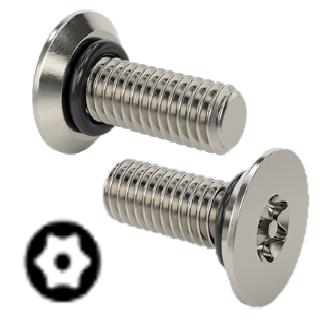

97870A199 | Metric Sealing Tamper-ResistantTorx Flat Head Screws

$1.68

Bulk orders will be discounted, please contact us.

Product Number: 97870A199

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Product Number 97870A199
System of Measurement Metric
Drive Style Tamper-Resistant Torx
Head Type Flat
Threading Fully Threaded
Thread Direction Right Hand
Thread Fit Class 6g
Thread Pitch 0.8 mm
Thread Size M5
Thread Spacing Coarse
Thread Type Metric
Drive Size T25
For Maximum Hole Diameter 5.562 mm
Length 10 mm
Screw Features Sealing
Material 18-8 Stainless Steel
Hardness Not Rated
Tensile Strength 70,000 psi
Maximum Pressure 1,500 psi
O-Ring Material Buna-N Rubber
O-Ring Temperature Range -40° to 225° F
Countersink Angle 90°
Country of Origin Peoples Republic of China
Finish Passivated
Flat Head Profile Undercut
Head Diameter 11.2 mm
Head Height 1.8 mm
Schedule B 731815.9000
