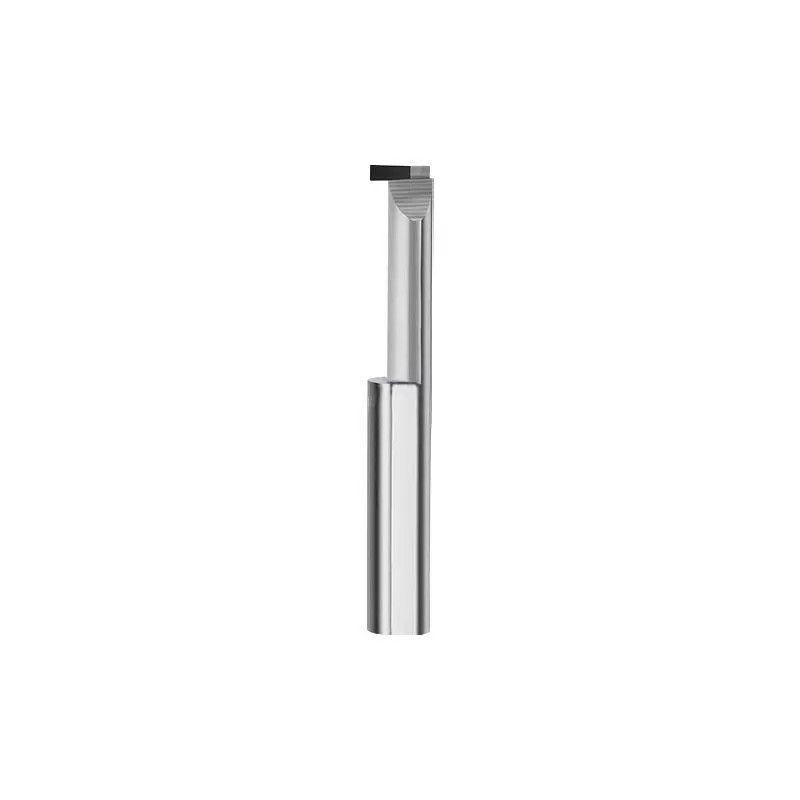

16T410 Internal Threading Tool Sets

$315.74Including tariffs

Bulk orders will be discounted, please contact us.

Product Number: 16T410

Mfr Model	IT-1
Cutting Direction	Right Hand
Center to Cutting Tip	0.0550 in; 0.0740 in; 0.0750 in; 0.1330 in; 0.1340 in; 0.1730 in
Features	Corner Radius Profile; Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling; Split Geometry Makes the Tool as Rigid as Possible
Includes	IT-200600; IT-230600; IT-290750; IT-320750; IT-360750; Mfr. No. IT-180500
Cutting Application	Threading
Overall Length	2-1/2 in
Shank Dia	1/4 in; 3/8 in; 5/16 in
Finish Machining	Bright (Uncoated)
Number of Tools	6
Largest Bar Min Bore Dia	0.3600 in
Largest Shank Dia	3/8 in
Material Machining	Carbide
Shank Type Machining	Straight with Three Flats
Smallest Bar Min Bore Dia	0.1800 in
Smallest Shank Dia	1/4 in
UNSPSC	23153309
Country of Origin	USA (subject to change)
Projection	0.0400 in; 0.0450 in; 0.0550 in; 0.0700 in; 0.0750 in; 0.0850 in
Shank Material	Carbide
Offset Point	0.0230 in; 0.0260 in; 0.0320 in; 0.0400 in; 0.0430 in; 0.0490 in
Thread Direction	Right Hand
Included Angle	60 °
Max Hole Depth	0.6000 in; 1/2 in; 3/4 in
Min Teeth per Inch	10; 14; 20; 24
