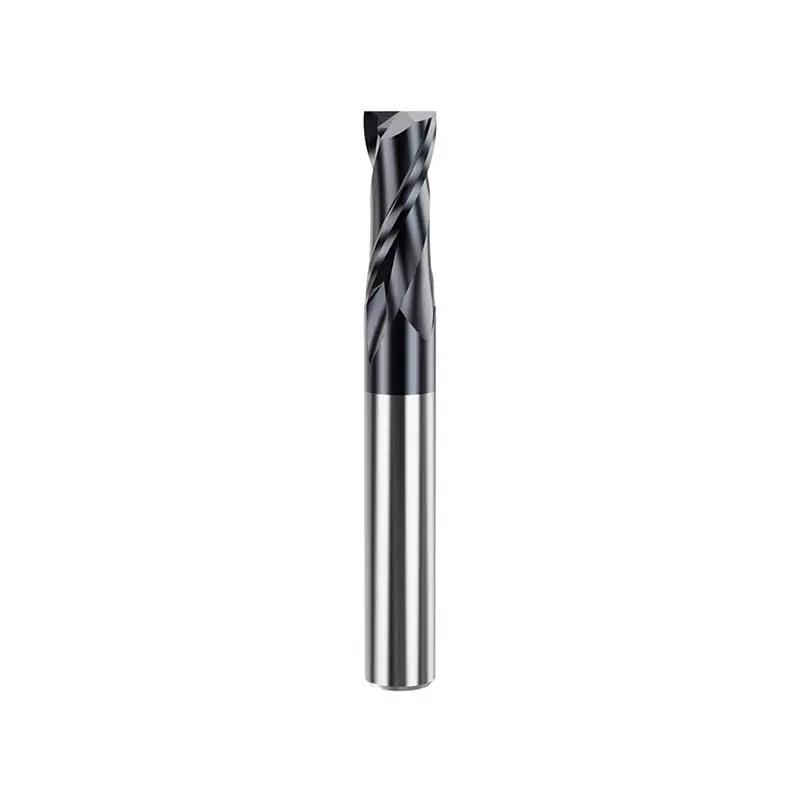

55FF80 High-Performance Roughing Carbide Corner-Radius End Mills

$373.66Including tariffs

Bulk orders will be discounted, please contact us.

The WXL coating on these end mills protects them from wear and is designed for milling nonferrous metals and steels with a Rockwell hardness of up to 50 HRC. It is harder and has a higher oxidation temperature than a TiAlN coating.

Product Number: 55FF80

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 38154911
Material Machining Carbide
Finish Machining WXL
Measurement System Fractional Inch
Milling Dia 1 in
Length of Cut 2 in
Overall Length 5 in
Shank Dia 1 in
Shank Type Machining Straight
End Mill Style Corner Radius
Number of Flutes 4
End Mill Application Roughing
Drilling Tool Configuration Individual
End Mill Cutting Type Center Cutting
List Number 3815
Material Grade Machining C2 Micrograin
Primary Material Application Cast Iron; Steel; Tool and Die Steel
Primary Material Application ISO Code K; P
UNSPSC 23172005
Country of Origin Japan (subject to change)
Material Applications Alloy Steel; Carbon Steel; Prehardened Steel; Stainless Steel
Flute Type Helical
Spiral Direction Right Hand
Coolant Fed Non-Coolant Through
Secondary Material Application Aluminum; Composite
Secondary Material Application ISO Code N
Corner Radius 3/32 in
Helix Angle Variable
Cutting Direction Right Hand
Neck Length 32.00mm
Neck Dia 2.85 mm
