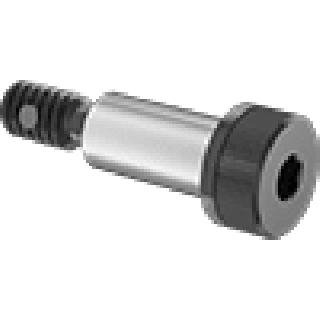

91319A203 | Metric Alloy Steel Thread-Locking Shoulder Screws

$3.75

Bulk orders will be discounted, please contact us.

Product Number: 91319A203

Product Number	91319A203
System of Measurement	Metric
Drive Style	Hex
Head Type	Socket
Locking Type	Thread Locker
Thread Direction	Right Hand
Thread Fit	Class 5g6g
Thread Pitch	0.8 mm
Thread Size	M5
Thread Spacing	Coarse
Thread Type	Metric
Type	Nylon Pellet
Drive Size	3 mm
Socket Head Profile	Standard
Material	Alloy Steel
Hardness	Rockwell C32
Tensile Strength	150,000 psi
Specifications Met	ASME B18.3.3M, ISO 7379
Country of Origin	Peoples Republic of China
Finish	Black Oxide
Head Diameter	10 mm
Head Height	5 mm
Head Texture	Knurled
Minimum Shear Strength	84,000 psi
Schedule B	731815.9000
Shoulder Diameter	6 mm
Shoulder Diameter Tolerance	-0.049 to -0.01 mm
Shoulder Fit	Standard
Shoulder Length	12 mm
Shoulder Length Tolerance	0 to 0.25 mm
Temperature Range	-50° to 250° F
Thread Length	10 mm
