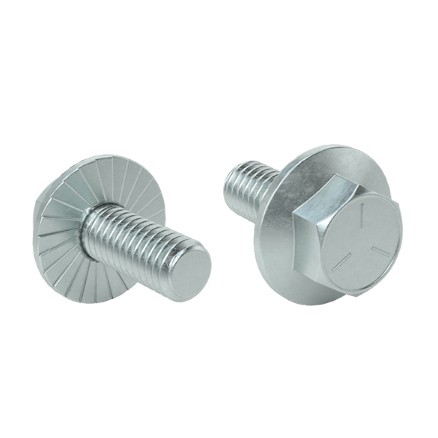

94386A101 | Extra-Wide Serrated-FlangeHex Head Screws

$0.14

Bulk orders will be discounted, please contact us.

Product Number: 94386A101

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Product Number 94386A101
System of Measurement Inch
Drive Style External Hex
Head Type Hex
Locking Type Serrations
Threading Fully Threaded
Thread Direction Right Hand
Thread Fit Class 2A
Thread Size 1/4"-20
Thread Spacing Coarse
Thread Type UNC
Height 9/32"
Flange Diameter 5/8"
Screw Size Decimal Equivalent 0.25"
Length 1"
Screw Features Flanged
Material Zinc-Plated Steel
Hardness Rockwell C22
Tensile Strength 110,000 psi
Specifications Met IFI 111, SAE J429
Country of Origin Peoples Republic of China
Fastener Strength Grade Class Grade 5
Schedule B 731815.9000
Width 3/8"
