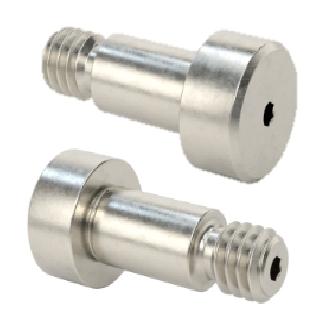

96706A105 | Shoulder Screws with Hex-Drive Tip

$3.59

Bulk orders will be discounted, please contact us.

Product Number: 96706A105

SEND INQUIRY

  • Description
Product Number 96706A105
System of Measurement Inch
Drive Style Hex
Head Type Socket
Thread Direction Right Hand
Thread Fit Class 3A
Thread Size 8-32
Thread Spacing Coarse
Thread Type UNC
Drive Size 0.050"
Screw Size Decimal Equivalent 0.164"
Socket Head Profile Standard
Material 18-8 Stainless Steel
Hardness Rockwell B55
Tensile Strength 70,000 psi
Country of Origin Peoples Republic of China
Head Diameter 5/16"
Head Height 5/32"
Head Texture Knurled
Minimum Shear Strength 35,000 psi
Schedule B 731815.9000
Shoulder Diameter 3/16"
Shoulder Diameter Tolerance -0.004" to -0.002"
Shoulder Fit Standard
Shoulder Length 3/8"
Shoulder Length Tolerance -0.005" to 0.005"
Thread Length 3/16"
Tip Drive Size 0.050"
